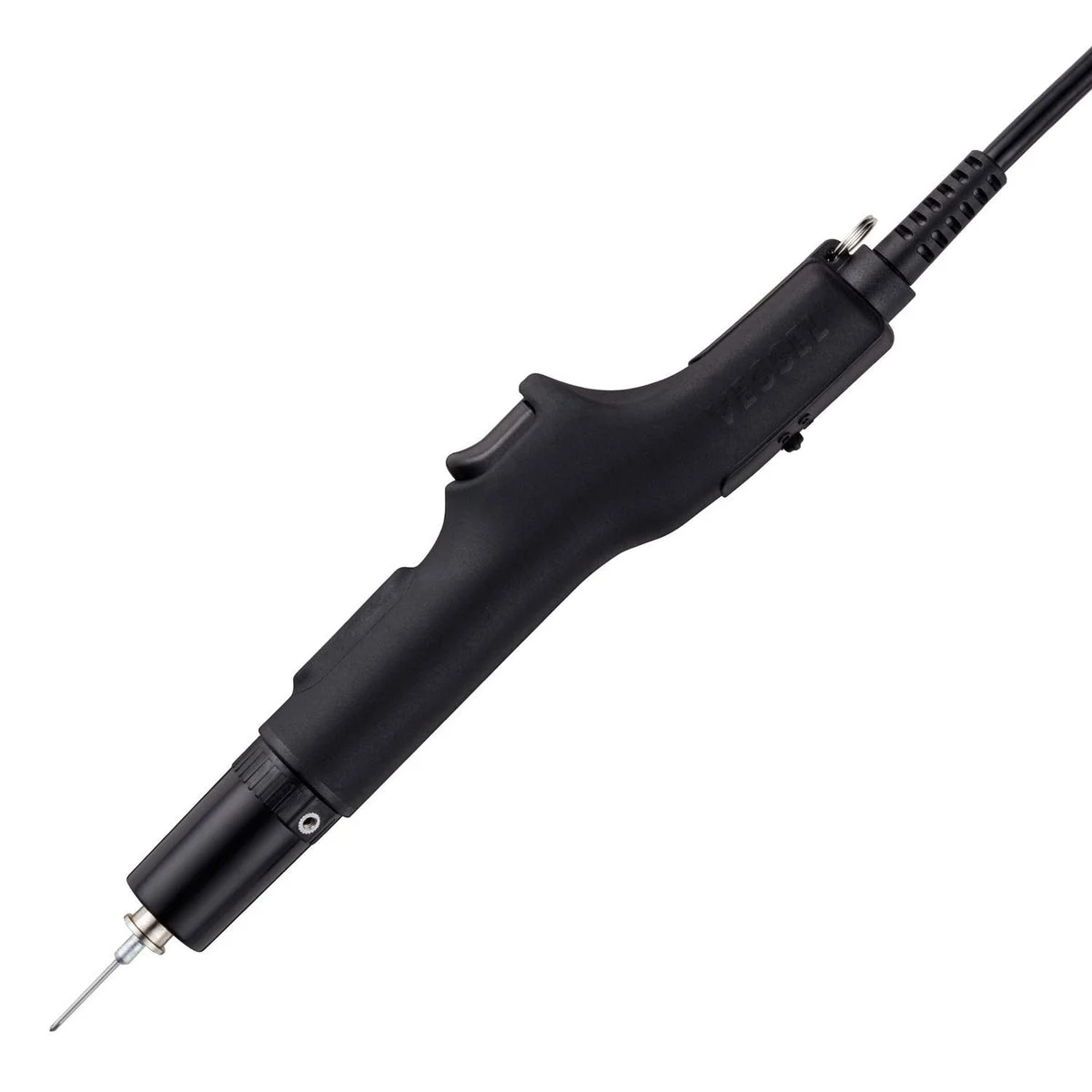

VESSEL Electric Screwdriver VE-1500EPA D73Φ4mm

Descrizione

Product Description

This high-precision electric screwdriver is designed for small-scale fastening tasks, offering an output torque range of 0.01 to 0.15 N-m. It is compatible with small screws (M1.0 to M1.7) and tapping screws (1.0 to 1.5 mm). The device features a slotless brushless motor, which enhances tightening accuracy, efficiency, and maintainability. Its ergonomic design includes a shock-absorbing gel pad for a firm grip, making it easy to use.

Product Specification

Output Torque Range:0.01~0.15 N-m
Compatible Screws:Small screws (M1.0~M1.7), Tapping screws (1.0~1.5 mm)
Torque Adjustment Sleeve:24 steps x 5 graduations
No-load Rotation Speed:HI/1000 min-1, LO/700 min-1
Rating:DC12V 15W
Cable Length:2 m
Material:PC+elastomer
Operating Temperature/Humidity:0~40℃, 10~80% RH
Surface Resistance:1.0×10⁵~1.0×10¹⁰Ω
Included Bits:D73 +0×1.4×40 (1 pc), +0×1.7×40 (1 pc)

Features

Slotless Brushless Motor:Improves tightening accuracy, efficiency, and maintainability.
Ergonomic Design:Easy-to-use with a shock-absorbing gel pad for a firm grip.
Precise Torque Adjustment:16 steps x 8 scales for precise adjustment.
Tamper-resistant Sleeve:Prevents accidental operation of adjustment.
Magnetic Switch:Reduces wear and tear on parts.
Integrated Power Cord:Prevents breakdowns when the connector is detached or pulled.
Controller Installation:The included controller has an R-cut on the back for easy installation on the cell stand pipe.

Included Accessories

Main Unit:With power cord
Controller:VCT-20
AC Cable:1.8 m
Anti-tangle Sleeve:1 pc
Set Screws:2 pcs (M3 x 3)
Hex Wrench:H1.5
Conversion Adapter:3P2P (1 pc)
Conversion Cord:3P/6P
Instruction Manual:Included

Controller VCT-20 Specification

Rating:AC100-240V 50/60Hz 31-42VA
Secondary Power:DC9V/12V 1.0A
Dimensions:72 x 170 x 40 mm
Weight:230 g
Applicable Standard:PSE
Compatible Models:VE-1500EPA, VE-2000EPA
